Honda Accord: Hood Seal and Hood Molding
Replacement
NOTE: Take care not to scratch the hood.
1. Detach the clips (A) with a clip remover, then remove the hood seal (B). On Canada models: Detach the clips (C), then remove the hood molding (D).
2-door - Except Canada models

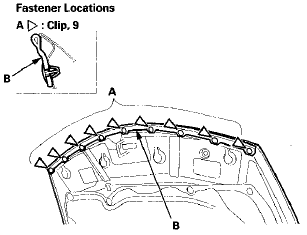

2-door - Canada models

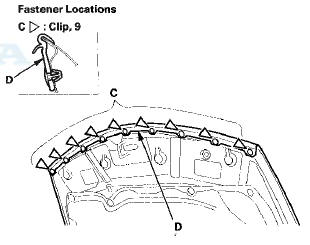

4-door - Except Canada models

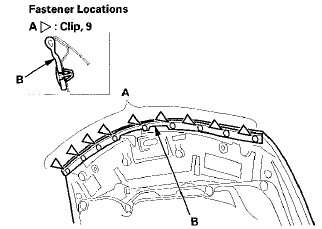

4-door - Canada models
2. Install the seal or the molding in the reverse order of removal, and note these items: - If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
Hood Adjustment
1. Remove these Items:
- Front grille cover:
- 2-door (see page 20-274)
- 4-door (see page 20-274)
- Cowl covers (see page 20-278)
- Hood latch cover, 4-door (see step 2 on page 20-302)
2. Sligh ...
Hood insulator Replacement
For Some Models
NOTE; Take care not to scratch the hood.
1. Detach the clips with a clip remover. Remove the
hood insulator (A) by pulling it away from the hooks
(B).
2. Install the ins ...
