Honda Accord: Ground Distribution - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Ground Distribution

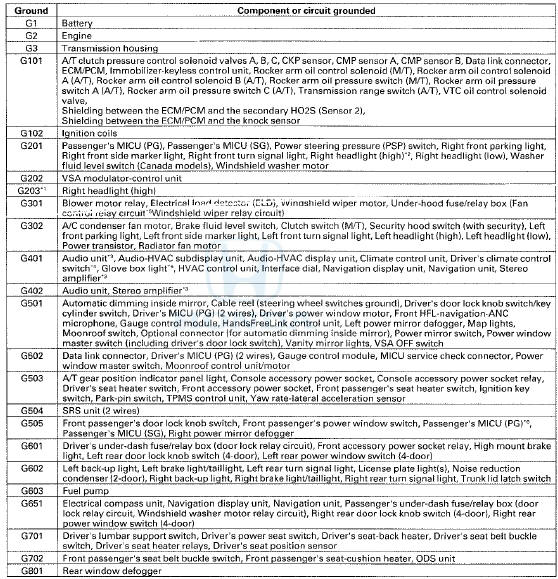

Ground to Components Index

* 1 : EX-L, EX-L PZEV


* 1 : EX-L, EX-L PZEV

*2: Except EX-L, EX-L PZEV

*3: With premium audio system

*4: With navigation system

*5: '10 model

*6: '08-09 models

    Power Distribution
    Fuse to Components Index Under-hood Fuse/Relay Box * 1 : LX, LX PZEV, LX-P, LX-P PZEV *2: Except LX, LX PZEV, LX-P, LX-P PZEV Driver's Under-dash Fuse/Relay Box Passenger's Under-dash Fus ...

    Under-hood Fuse/Relay Box
    Removal and Installation Special Tools Required Relay Puller 07AAC-000A1A0 NOTE; The under-hood fuse/relay box is a part of the left engine compartment wire harness, and it cannot be replaced by ...

    See also:

    Gauge Control Module Replacement
    NOTE: Before replacing the gauge control module, rewriting the ODO data and transferring the maintenance minder data to a new gauge control module (see page 22-350). 1. Remove the instrument vis ...

    A/C Signal Circuit Troubleshooting
    NOTE: • If the blower motor does not run at all speeds, the A/C compressor will be inoperative. Run the self-diagnostic function, and check for DTC B1241. Before performing any other troubl ...

    Circuit Diagram
    ...
