Honda Accord: Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
and
check to see if any applicable fuse is blown.
• Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

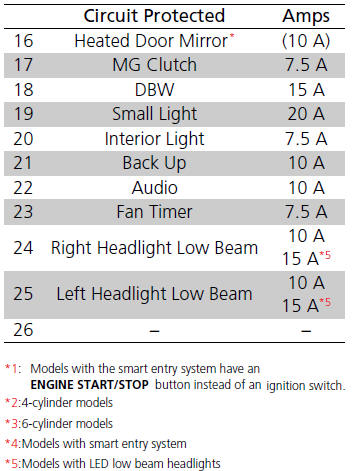

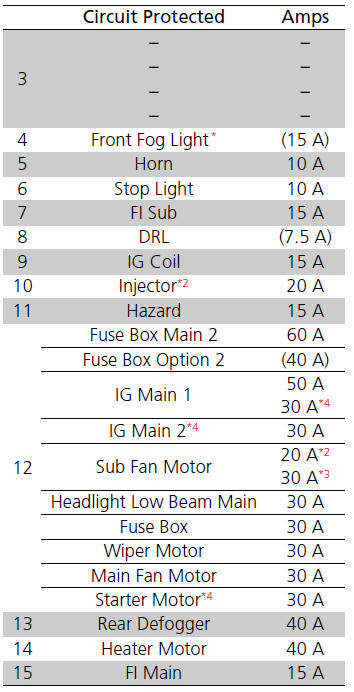

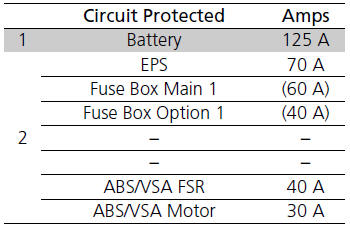

• Circuit protected and fuse rating
• Interior Fuse Box
Located under the dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.

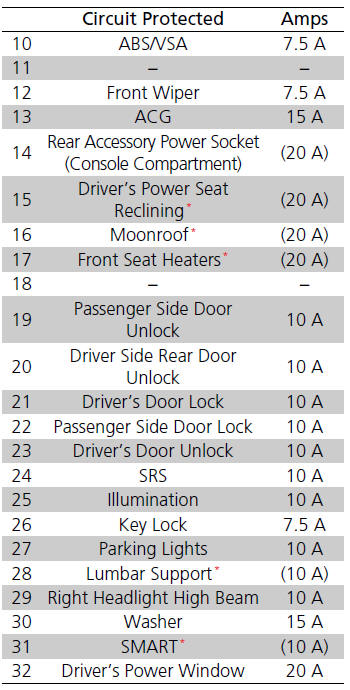

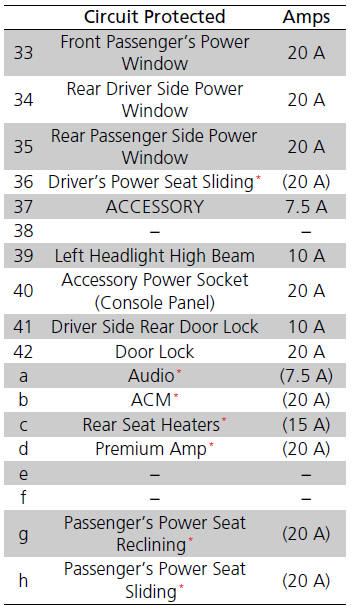

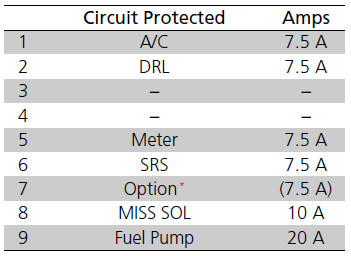

• Circuit protected and fuse rating
Fuses
...
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
- If the fuse is blow ...
