Honda Accord: Fuel Line Inspection

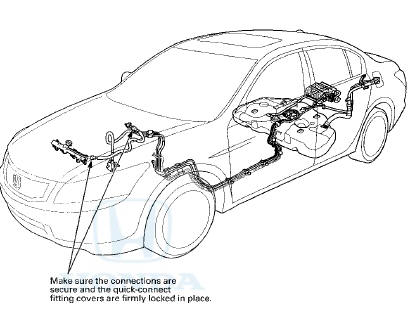

Check the fuel system lines and hoses for damage, leaks, and deteriorationi,. Replace any damaged parts.
Check all clamps, and make sure they are properly positioned and tightened.

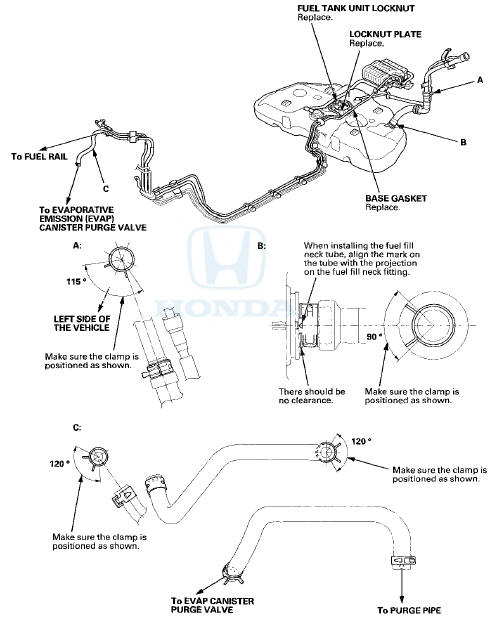

All models except PZEV
Check all clamps, and make sure they are properly positioned and tightened.

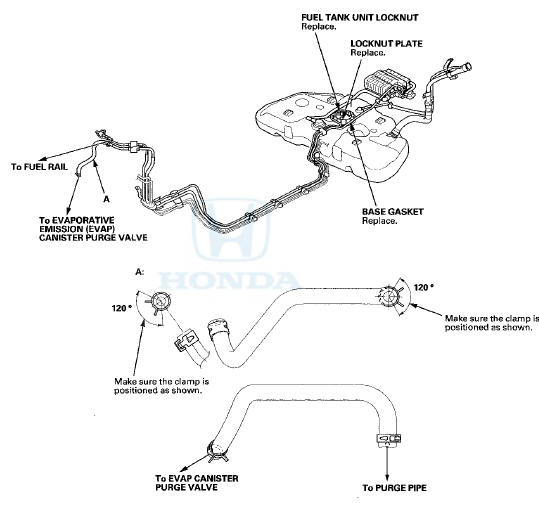

PZEV model
