Honda Accord: Frame Brace Replacement - Frame - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Frame Brace Replacement

Strut Brace Replacement

1. Remove the cowl cover (see page 20-278).

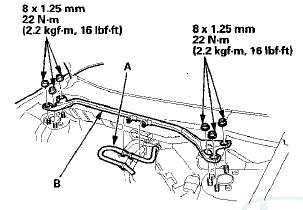

2. Disconnect the brake booster vacuum hose (A) from the strut brace (B).

3. Remove the nuts from the top of the damper, and


3. Remove the nuts from the top of the damper, and remove the strut brace.

4. install the strut brace in the reverse order of removal.
