Honda Accord: EVAP Canister Purge Valve Replacement - EVAP System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: EVAP Canister Purge Valve Replacement

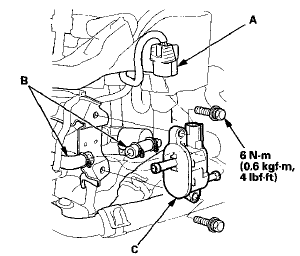

1. Disconnect the E V A P canister purge valve 2P connector ( A ) .

2. Disconnect the hoses ( B ) , then remove the I V A P


2. Disconnect the hoses ( B ) , then remove the I V A P canister purge valve ( C ) .

3. Install the parts in the reverse order of removal.
