Honda Accord: DTC Troubleshooting Index - VSA System Components - Brakes - Honda Accord MK8 2008-2012 Service ManualHonda Accord: DTC Troubleshooting Index

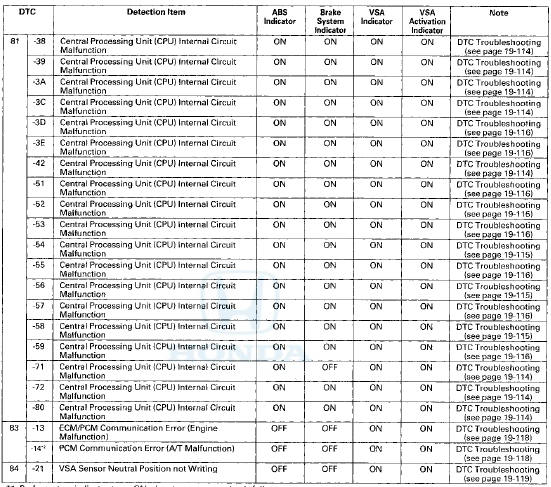

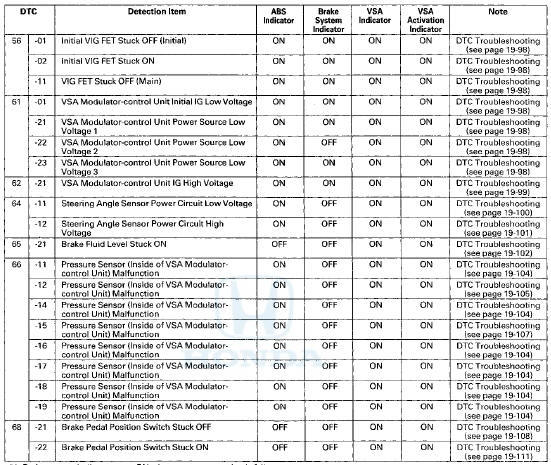

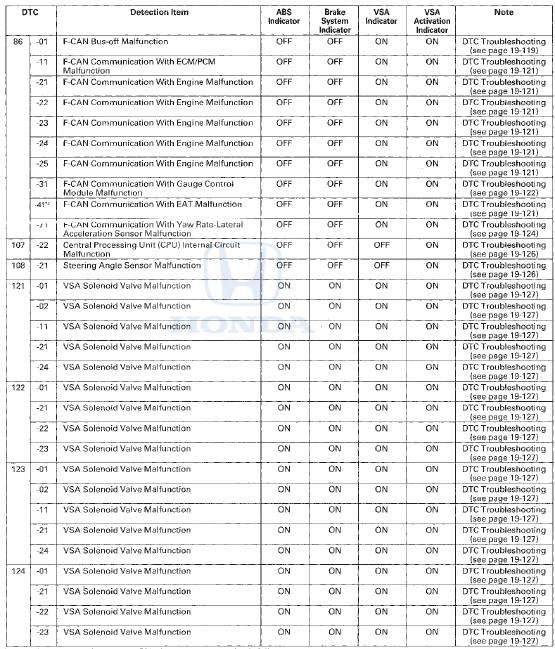

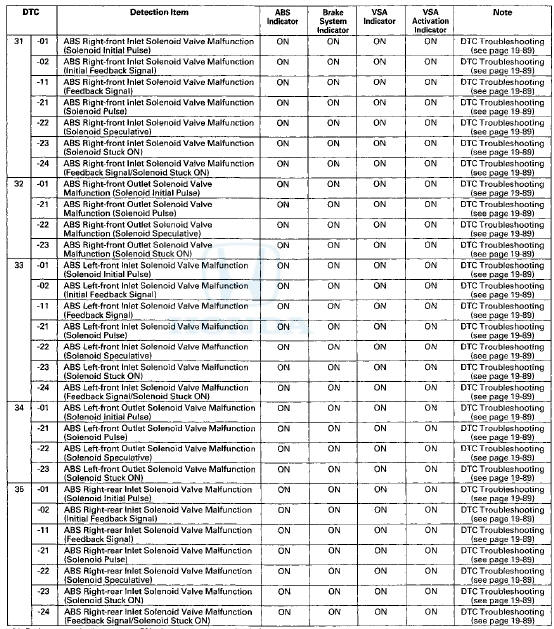

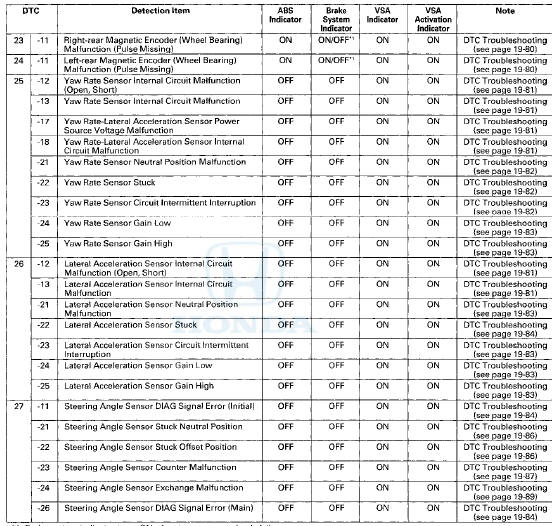

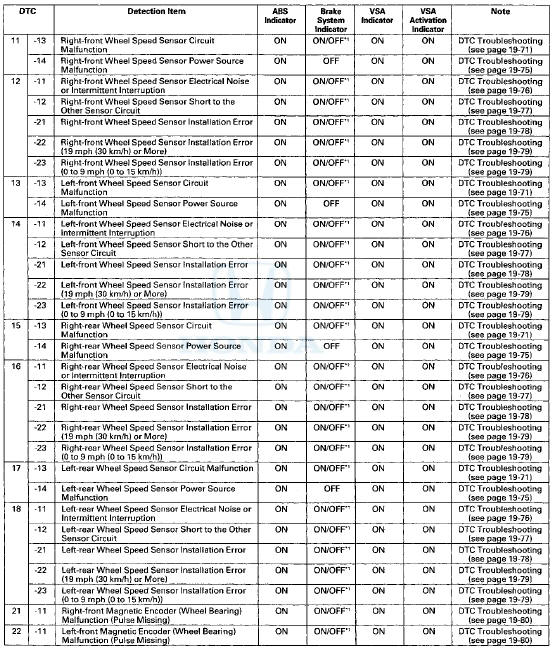

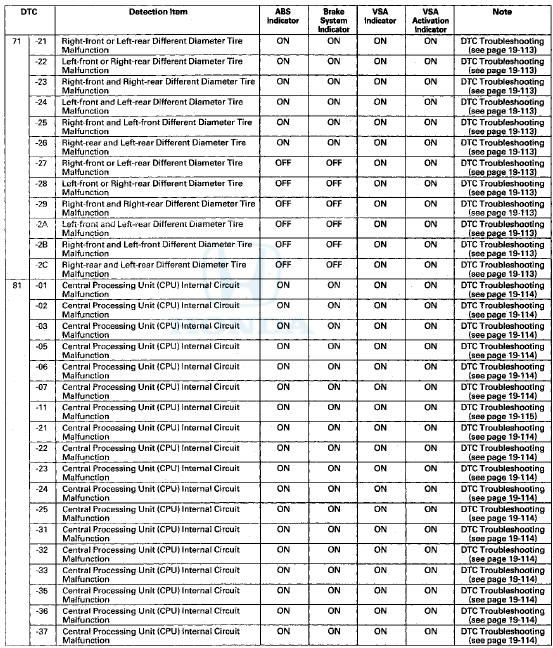

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T

*1: Brake system indicator turns ON when two or more wheels fail.


*1: Brake system indicator turns ON when two or more wheels fail.

*2: A/T

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T

*1: Brake system indicator turns ON when two or more wheels fail.


*1: Brake system indicator turns ON when two or more wheels fail.

*2: A/T

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T

* 1 : Brake system indicator turns ON when two or more wheels fail.


* 1 : Brake system indicator turns ON when two or more wheels fail.

*2: A/T
