Honda Accord: Dashboard - Relay and Control Unit Locations - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Dashboard

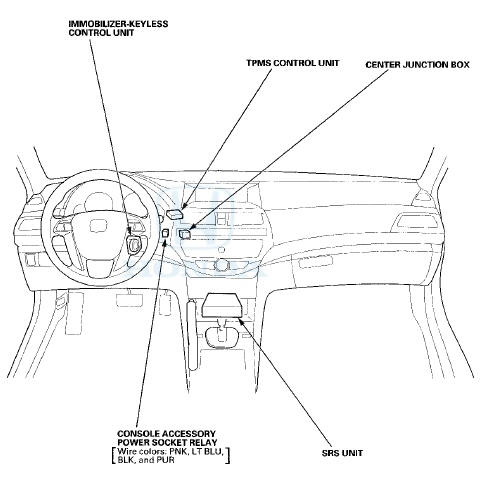

With Navigation System

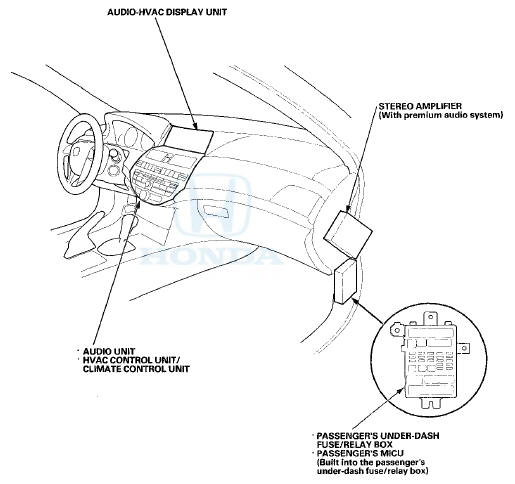

With Navigation System

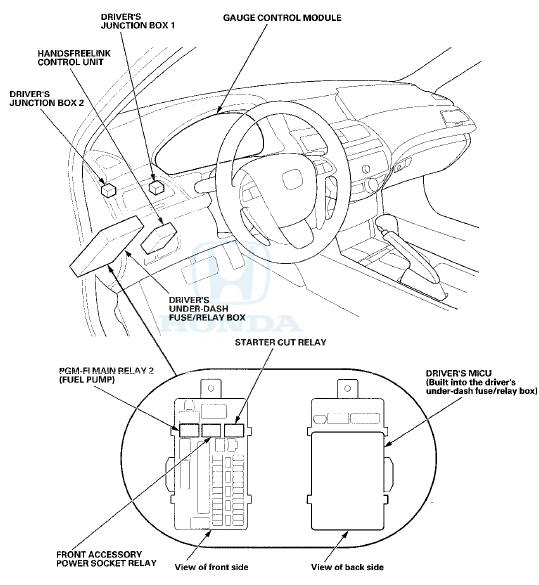

Without Navigation System

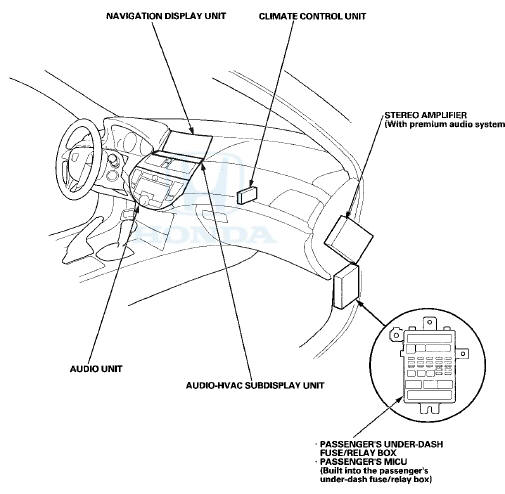

Without Navigation System

Roof and Trunk


    Engine Compartment
      ...

    Roof and Trunk
    ...
