Honda Accord: Cylinder Head Inspection for
Warpage
1. Remove the cylinder head (see page 6-76).
2. Inspect the camshaft (see page 6-84).

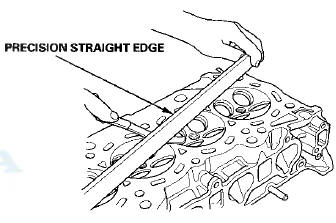

3. Check the cylinder head for warpage. Measure along the edges, and three ways across the center.
- If warpage is less than 0.05 mm (0.002 in) cylinder head resurfacing is not required.
- If warpage is between 0.05 mm (0.002 in) and 0.2 mm (0.008 in), resurface the cylinder head.
- The maximum resurface limit is 0.2 mm (0.008 in) based on a height of 104 mm (4.09 in).
Cylinder Head Height
Standard (New): 103.95-104.05 mm
(4.093-4.096 in)
Service Limit: 103.8 mm (4.087 in)
VTC Actuator, Exhaust Camshaft
Sprocket Replacement
Removal
1. Remove the cam chain (see page 6-62).
2. Hold the camshaft with an open-end wrench, then
loosen the variable valve timing control (VTC)
actuator mounting bolt and the exhaust camshaft ...
Rocker Arm Assembly Removal
1 Remove the cam chain (see page 6-62).
2. Loosen the rocker arm adjusting screws (A).
3. Remove the camshaft holder bolts. To prevent
damaging the camshafts, loosen the bolts, in
sequence, tw ...
