Honda Accord: Crankshaft Main Bearing Replacement - Engine Block - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Crankshaft Main Bearing Replacement

Main Bearing Clearance Inspection

1. To check the main bearing-to-journal oil clearance, remove the lower block and the bearing halves (see page 7-14).

2. Clean each main journal and the bearing half with a clean shop towel.

3. Place one strip of plastigage across each main journal.

4. Reinstall the bearings and the lower block, then torque the bolts to 29 N-m (3.0 kgf-m, 22 Ibfft).

NOTE: - Apply new engine oil to the bolt threads and flanges.

- Do not rotate the crankshaft during inspection.

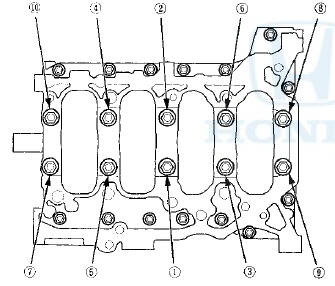

5. Tighten the bearing cap bolts an additional 48 Р’В°.


5. Tighten the bearing cap bolts an additional 48 Р’В°.

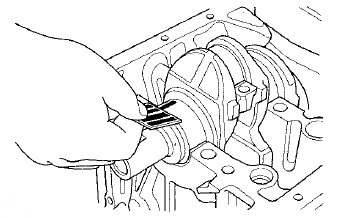

6. Remove the lower block and the bearings again, and measure the widest part of the plastigage.

Main Bearing-to-Journal Oil Clearance

No. 1,2,4,5 Journals:

Standard (New): 0.017-0.041 mm

(0.0007-0.0016 in)

Service Limit: 0.050 mm (0.0020 in)

No. 3 Journal:

Standard (New): 0.025-0.049 mm

(0.0010-0.0019 in)

Service Limit: 0.055 mm (0.0022 in)

7. If the plastigage measures too wide or too narrow,


7. If the plastigage measures too wide or too narrow, remove the crankshaft, and remove the upper half of the bearing. Install a new, complete bearing with the appropriate color code(s), and recheck the clearance.

Do not file, shim, or scrape the bearings or the caps to adjust clearance.

8. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below the current one), and check again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.

Main Bearing Selection

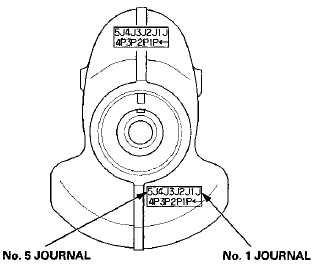

Crankshaft Bore Code Location

1. Numbers, letters, or bars have been stamped on the end of the lower block as a code for the size of each of I the five main journal bores. Write down the crank bore codes.

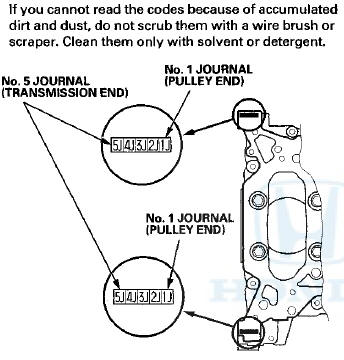

Main Journal C o d e Location


Main Journal C o d e Location

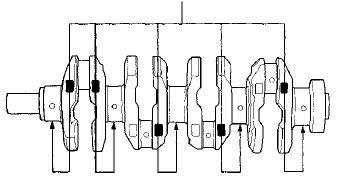

2. The m a i n J o u r n a l c o d e s a r e stamped on the crankshaft in either location.

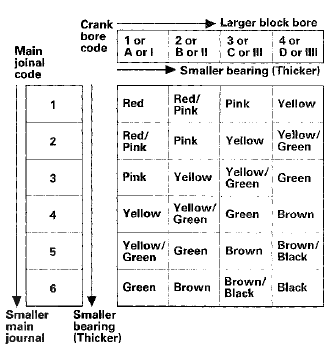

3. Use the crank bore codes and the crank journal codes


3. Use the crank bore codes and the crank journal codes to select the appropriate replacement bearings from the following table.

NOTE: - The color code is on the edge of the bearing.

- When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

K24Z2 engine

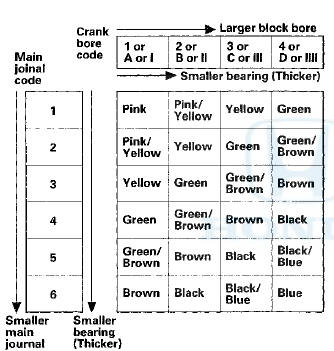

K2423 engine


K2423 engine
