Symptom Troubleshooting Index

NOTE: Do an all DTC check with the HDS and troubleshoot those first before following the repair procedures listed in the index. ...

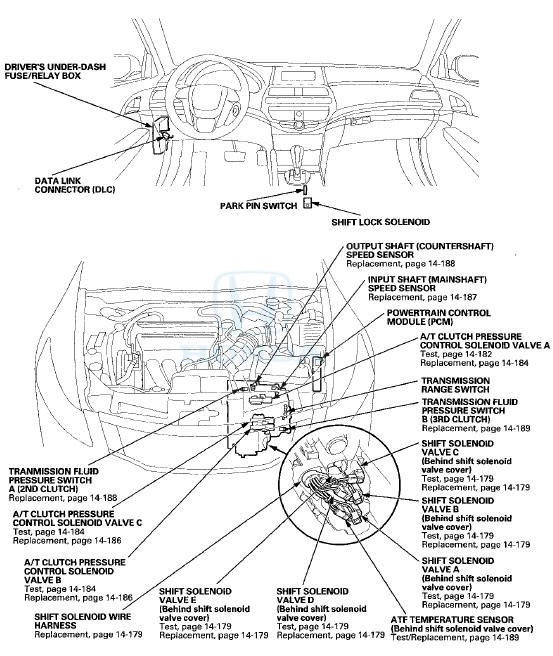

System Description

General Description The automatic transmission is a transverse-mounted three-shaft design, implemeting an electronically controlled hydraulic circuit that provides five forward speeds and one in r ...

See also:

Front Impact Sensor Replacement
Removal 1. Do t h e battery t e r m i n a l d i s c o n n e c t i o n procedure (see page 22-91), t h e n w a i t at least 3 m i n u t e s before s t a r t i ng work. 2. Remove t h e f r o n t b ...

DTC Troubleshooting
DTC indicator 1: An Open in the Air Mix Control Motor Circuit 1. Turn the ignition switch to LOCK (0), and then to ON (II). 2. Do the self-diagnostic function with the HVAC control unit (see pa ...

Cam Chain Auto-tensioner Removal and installation
Removal 1.Remove the chain case cover 2. Turn the crankshaft counterclockwise to compress the auto-tensioner. 3. Align the holes on the lock (A) and the auto-tensioner (B), then insert a 1.2 ...
