Backlash Inspection

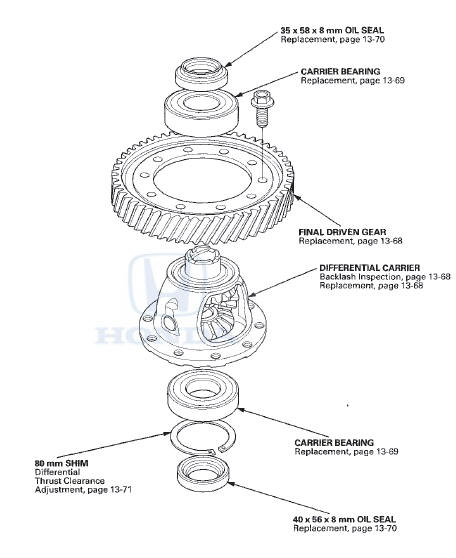

    M/T Differential
    ...

    Backlash Inspection
    1. Place the differential assembly on V-blocks (A), and install the intermediate shaft (B) and the left driveshaft (C). 2. Measure the backlash of both pinion gears (D) with a dial indicator (E) ...

    See also:

    Connecting Rod Bolt Inspection
    1. Measure the diameter of each connecting rod bolt at point A and point B. 2. Calculate the difference in diameter between point A and point B. Point A-”Point B = Difference in Diameter D ...

    Countershaft Inspection
    1. Inspect the gear and bearing contact areas for wear and damage, then measure the countershaft at points A, B, and C. If any part of the countershaft is less than the service limit, replace it. ...

    Shift Fork Clearance Inspection
    1. Measure the clearance between each shift fork (A) and its matching synchro sleeve (B). If the clearance exceeds the service limit, go to step 2. Standard: 0.35-0.65 mm (0.014-0.026 inj Service ...
