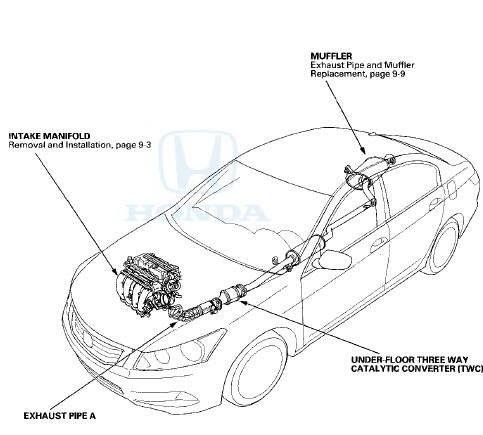

Intake Manifold and Exhaust System

...

Intake Manifold Removal and Installation

Exploded View Removal 1. Do the battery removal procedure (see page 22-92). 2. Remove the front grille cover: Р’В© 2-door (see page 20-274) Р’В© 4-door (see page 20-274) 3. Remove ...

See also:

CMP Sensor B Replacement
1. Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly. 2. Disconnect the CMP sensor B connector (A). 3. Remov ...

Oil Pump Overhaul
Exploded View Oil Pump Removal 1. Turn the crankshaft pulley so its top dead center (TDC) mark (A) lines up with the pointer (B). NOTE: The other pointer (C) is not used. 2. Remove the oil ...

Fuel Line/Quick-Connect Fitting Precautions
The fuel line/quick-connect fittings (A, B, C, D, E, and F) connect the fuel rail (G) to the fuel feed hose (H), the fuel feed hose to the fuel line (I), the fuel line (J) to the fuel tank unit (K) ...
