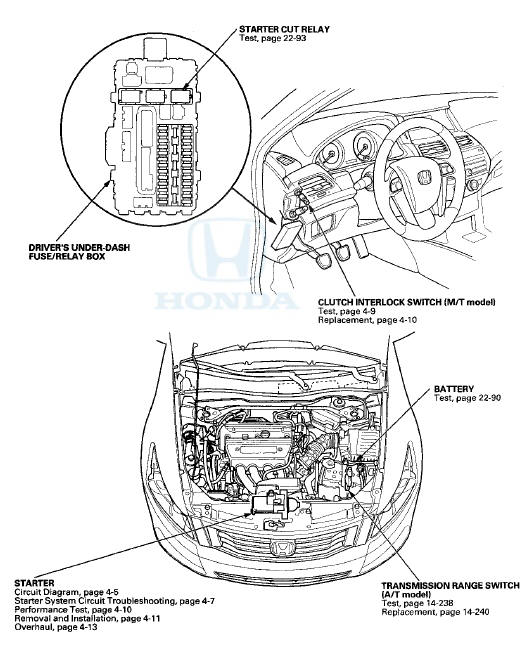

Starting System

Symptom Troubleshooting Index

See also:

Recirculation Control Motor Test
NOTE: Before testing the motor, check for HVAC DTCs (see page 21-101). 1. Disconnect the 7P connector from the recirculation control motor. Incorrectly applying power and ground to the recirc ...

Clutch Disassembly
Special Tools Required Clutch Spring Compressor Set 07LAE-PX40000 1. Remove the snap ring using a screwdriver. 2. Remove the clutch end-plate (A), the clutch discs (B) (5), the clutch wave-plate ...

Back-up Light Switch Test
1. Disconnect the back-up light switch 2P connector (A). 2. Check for continuity between back-up light switch 2P connector terminals No. 1 and No. 2. There should be continuity only when the shif ...
