Honda Accord: Component Location Index - Rear Window Defogger - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Component Location Index

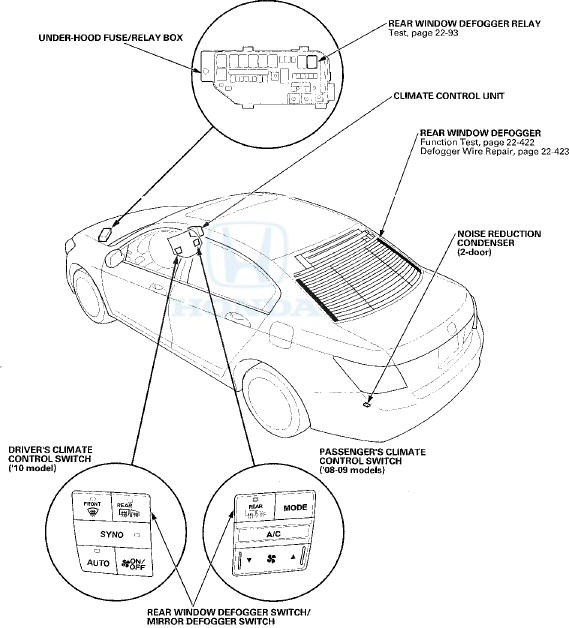

With navigation system

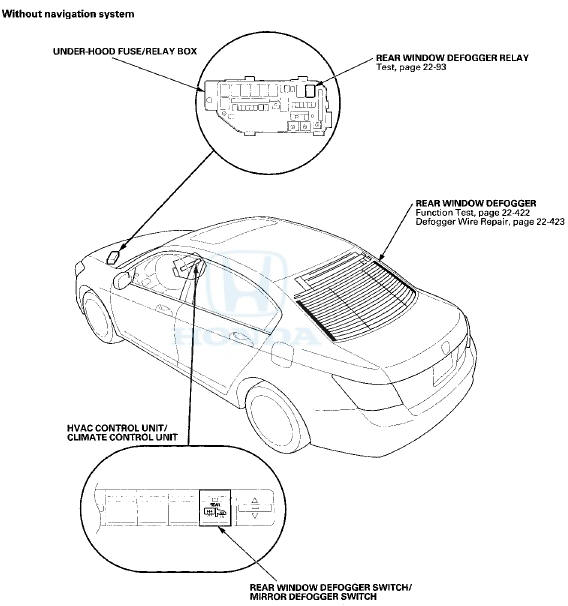

Circuit Diagram


    Rear Window Defogger
    ...

    Circuit Diagram
    '10 model w i t h navigation system '08-09 models with navigation system Without navigation system with climate control system With HVAC control system ...
