Power Windows

...

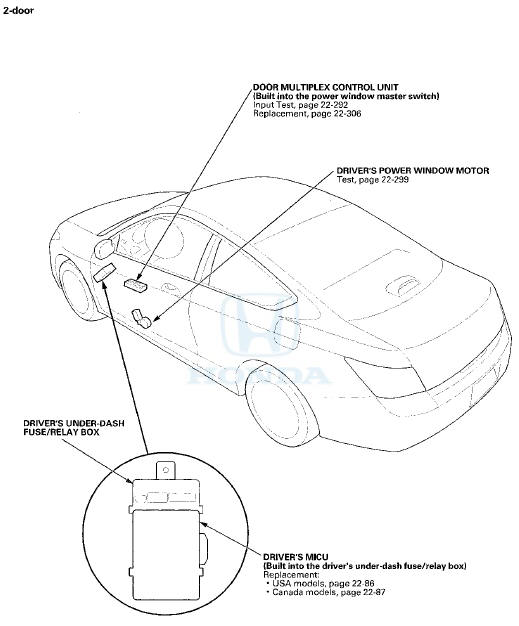

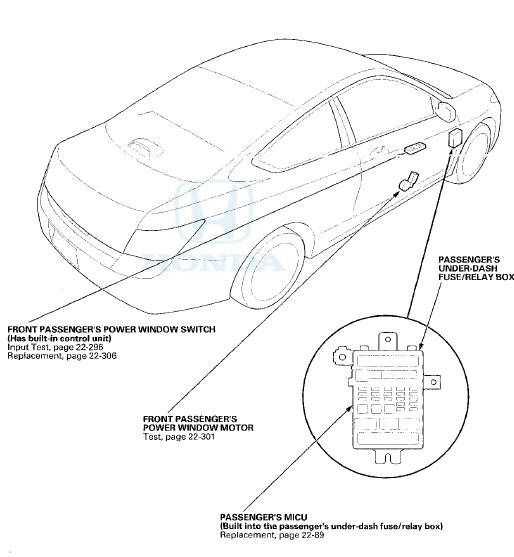

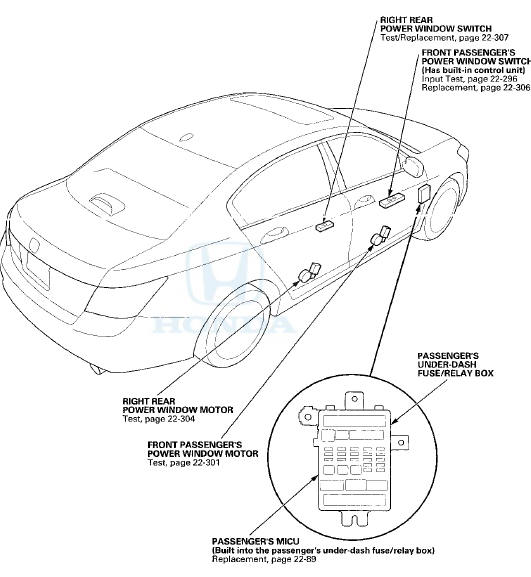

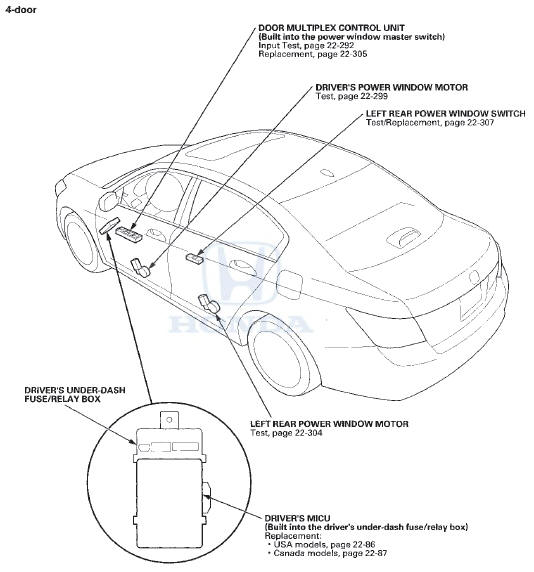

System Description

Auto Reverse Power Window Operation The system is composed of the driver's MICU, passenger's MICU, door multiplex control unit {built into the power window master switch), front passenger's power ...

See also:

Ceiling Light
The ceiling light has a three-position switch: ON, Door Activated, and OFF. In the Door Activated (center) position, the light comes on when you: Open either door. Unlock the driver’s do ...

Circuit Diagram
DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR N (16P) Wire side of female terminals DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR P (20P) Wire side of female terminals GAUGE CONTROL MODULE 3 ...

Recirculation Control Motor Test
'08-09 models 4-door with A/T and "10 model with A/T NOTE: Before testing the motor, check for HVAC DTCs (see page 21-9). 1. Disconnect the 7P connector from the recirculation control moto ...
