Honda Accord: Component Location Index - Exterior Lights - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Component Location Index

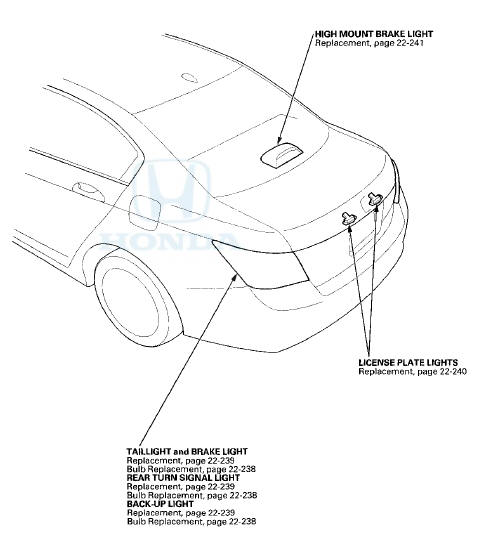

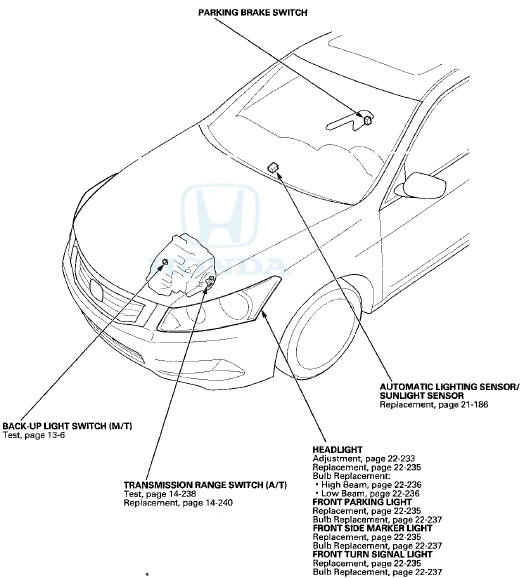

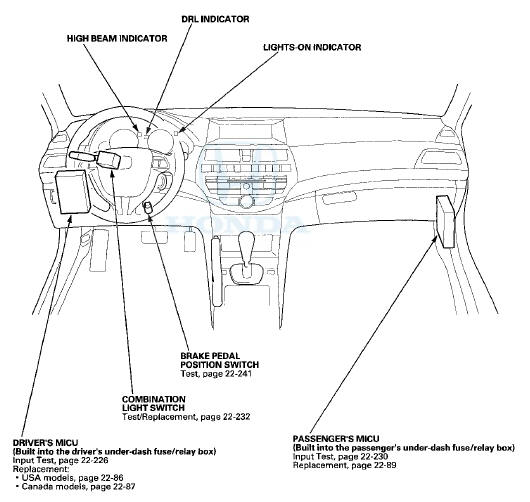

4-door






4-door

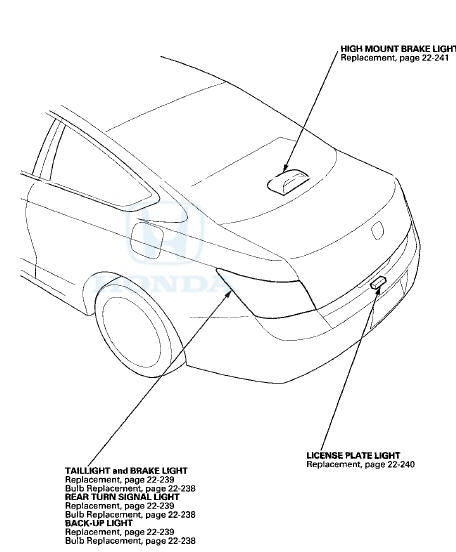

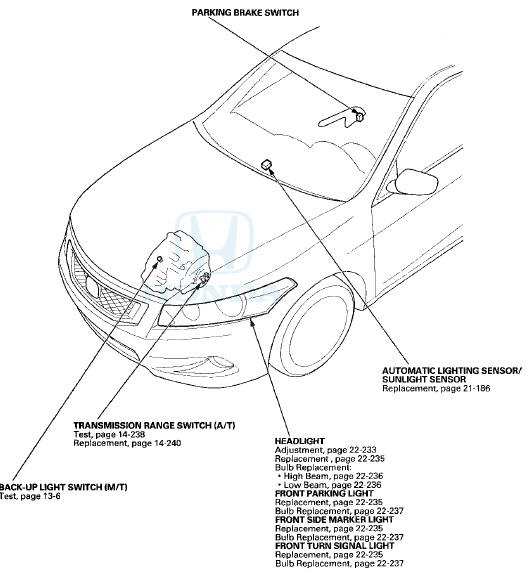

2-door

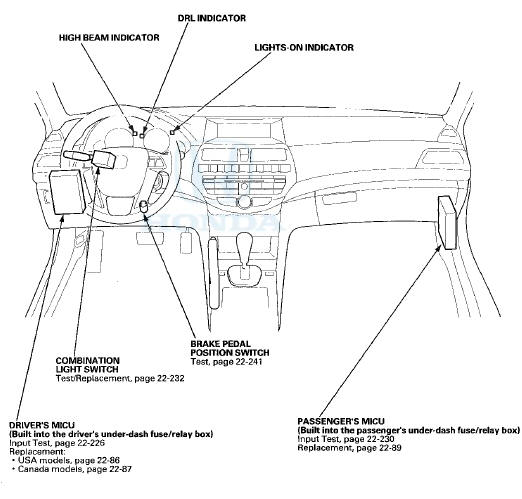

2-door


2-door


2-door

System Description


    Exterior Lights
    ...

    System Description
    Headlights System Description The headlight system Is composed of the driver's MICU, the passenger's MICU, the headlight and dimmer/flash-to-pass switches (Inside the combination light switch), th ...
