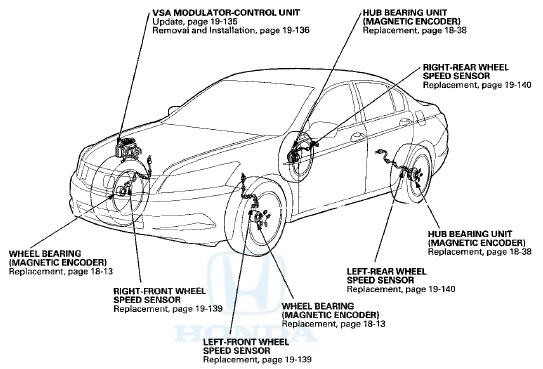

VSA System Components

...

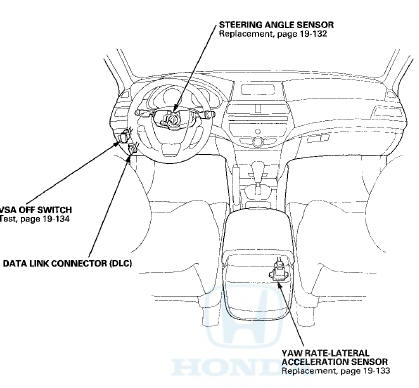

General Troubleshooting Information

Sf stem Indicator This system has four indicators; - ABS indicator (A) - Brake system indicator (B) - VSA indicator (C) - VSA activation indicator (D) When the system is OK, each indicator com ...

See also:

Countershaft Assembly Clearance Inspection
tightened to the specified torque (see page 13-46). 1. Measure the clearance between 1st gear (A) and the 1st gear distance collar (B) with a feeler gauge (C). - If the clearance exceeds the se ...

Starter Removal and Installation
Removal 1 Do the battery removal procedure (see page 22-92). 2. Remove the intake manifold (see page 9-4). 3. Disconnect the positive starter cable (A) from the B terminal, and the S terminal ...

DTC Troubleshooting
DTC indicator 1: An Open in the Air Mix Control Motor Circuit 1. Turn the ignition switch to LOCK (0), and then to ON (II). 2. Do the self-diagnostic function with the HVAC control unit (see pa ...
