A/T Differential

...

Backlash Inspection

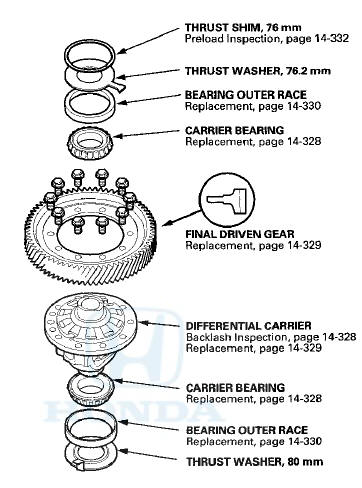

1. Install both axles into the A/T differential, then place the axles on V-blocks. 2. Check the backlash of the pinion gears (A) using a dial indicator (B). Standard: 0.05-0.15 mm (0.002-0.006 i ...
