Honda Accord: CMP Sensor A Replacement - VTEC/VTC - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: CMP Sensor A Replacement

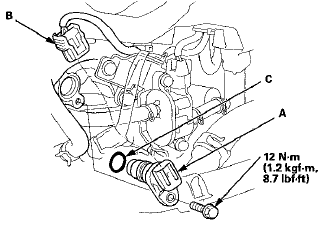

1. Disconnect the CMP sensor A 3P connector (B).

2. Remove CMP sensor A from the intake camshaft side


2. Remove CMP sensor A from the intake camshaft side of the cylinder head.

3. Install the parts in the reverse order of removal with a new O-ring (C).
