Honda Accord: CMP Pulse Plate B Replacement
1. Remove the cylinder head cover (see page 6-73).
2. Remove camshaft position (CMP) sensor B (see page 11-198).

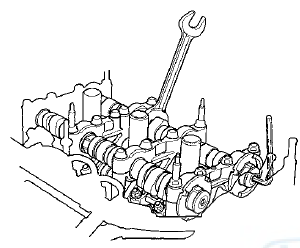

3. Hold the camshaft with an open-end wrench, then loosen the bolt.
4. Remove CMP pulse plate B.
the
5. Install CMP pulse plate B in the reverse order of removal.
