Honda Accord: CMP Pulse Plate A Replacement - Cylinder Head -All Models Except PZEV - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: CMP Pulse Plate A Replacement

1. Remove the cylinder head cover (see page 6-73).

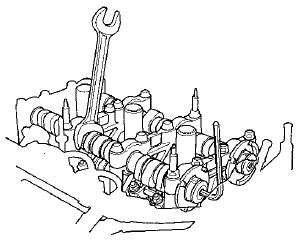

2. Remove camshaft position (CMP) sensor A (see page 11-274).

3. Hold the camshaft with an open-end wrench, then loosen the bolt.

4. Remove CMP pulse plate A.


4. Remove CMP pulse plate A.

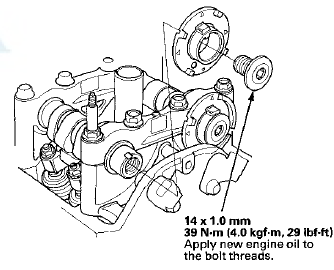

5. Install CMP pulse plate A in the reverse order of


5. Install CMP pulse plate A in the reverse order of removal.
