Honda Accord: Clutch Fluid
Manual transmission only

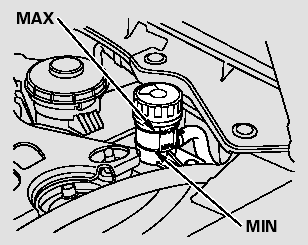

The fluid level should be between theMINandMAXmarks on the side of the reservoir. If it is not, add brake fluid to bring it up to that level.
Use the same fluid specified for the brake system.
A low fluid level can indicate a leak in the clutch system. Have this system inspected as soon as possible.
Brake Fluid
The fluid level should be between
theMINandMAXmarks on the side
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspect ...
Power Steering Fluid
Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering fluid to the
UPPER LEVEL.
Pou ...
