Honda Accord: CKP Sensor Replacement - PGM-FI System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: CKP Sensor Replacement

1. Raise the vehicle on a lift.

NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.

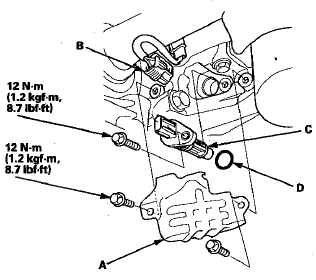

2. Remove the CKP sensor cover (A).

3. Disconnect the CKP sensor connector (B).


3. Disconnect the CKP sensor connector (B).

4. Remove the CKP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).

6. Do the CKP pattern clear/CKP pattern learn procedure (seepage 11-5).

7. Check the engine oil level, and add more oil if needed.
