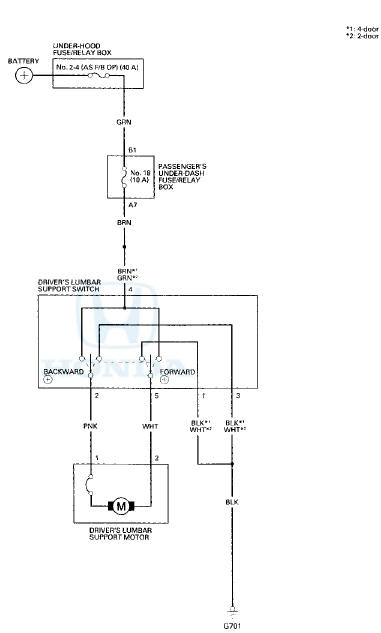

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Power Lumbar Support / Circuit Diagram

Switch Test/Replacement
1. Separate the lumbar support switch cover (A) from
the switch (B).
2. Disconnect the 5P connector (C) from the switch.
3. Check for continuity between the terminals in each
switch position a ...
