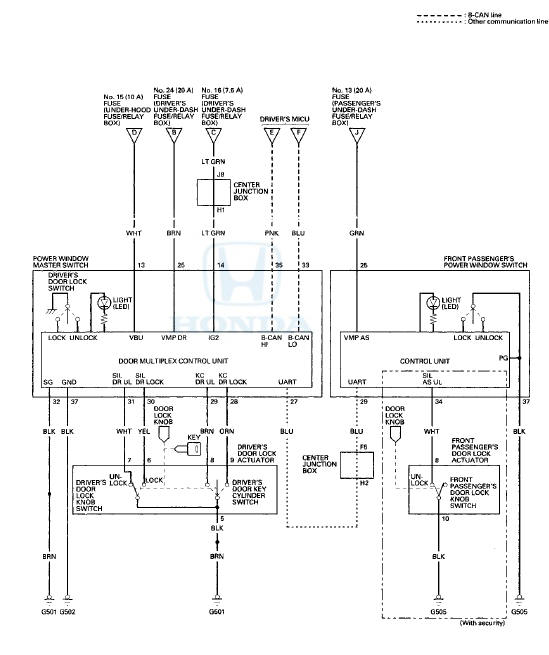

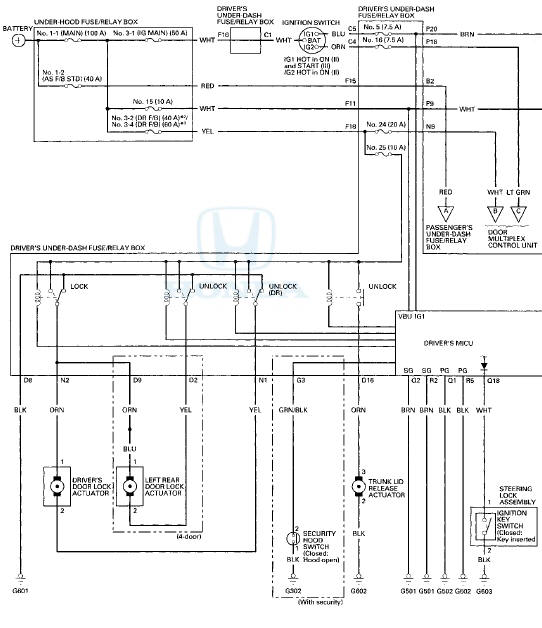

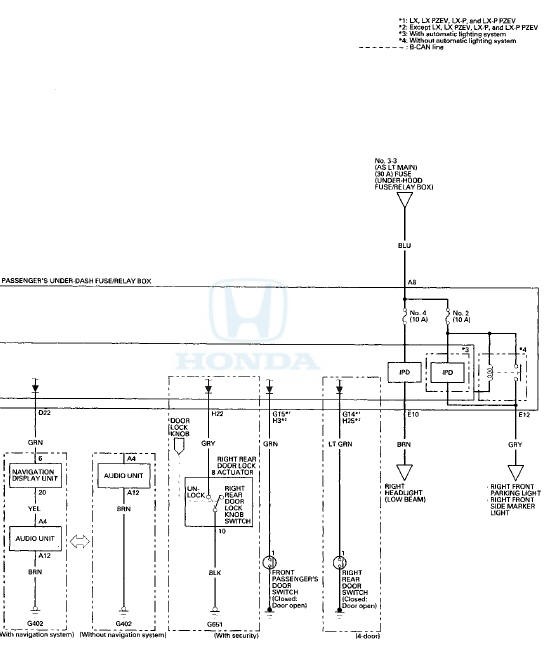

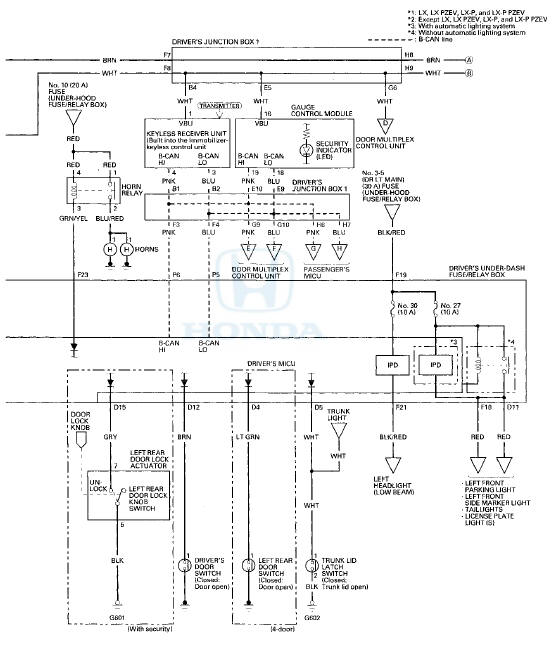

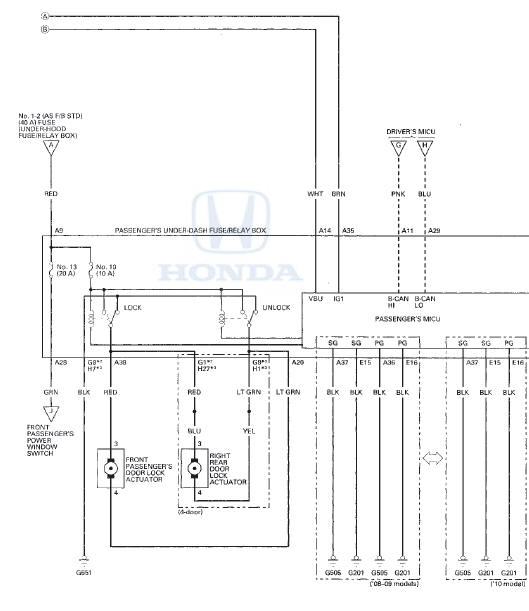

Honda Accord: Circuit Diagram - Keyless/Power Door
Locks/Security System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram





DTC Troubleshooting


    System Description
    Security Alarm The security alarm system is armed automatically after the doors, hood, and trunk lid are closed and locked. For the system to arm, the ignition switch must be in the LOCK (0) posit ...

    DTC Troubleshooting
    DTC B1127: Driver's Door Key Cylinder Switch Malfunction NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see page 22-134). ...
