Honda Accord: Circuit Diagram - Ignition Switch - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

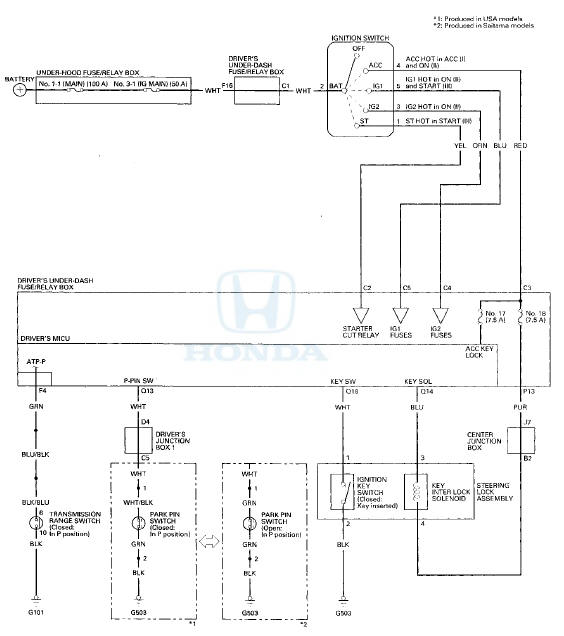

Key Interlock System Circuit


    Component Location Index
    ...

    Key Interlock System Circuit Troubleshooting
    Produced in USA models NOTE: SRS components are located in the area. Review the SRS component locations 4-door {see page 24-21), 2-door (see page 24-23), and precautions and procedures (see page 2 ...
