Change Lever Clearance Inspection

1. Measure the clearance between the change lever (A) and the select lever (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2. Standard: 0.05-”0.25 mm (0.002 ...

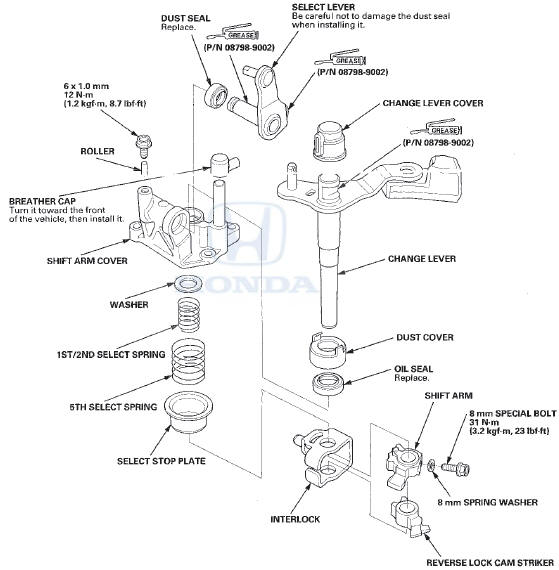

Shift Fork Clearance Inspection

1. Measure the clearance between each shift fork (A) and its matching synchro sleeve (B). If the clearance exceeds the service limit, go to step 2. Standard: 0.35-0.65 mm (0.014-0.026 inj Service ...
