Honda Accord: Cam Chain Removal - Cylinder Head -All Models Except PZEV - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Cam Chain Removal

NOTE: Keep the cam chain away from magnetic fields.

1. Remove the front wheels.

2. Remove the splash shield (see step 25 on page 5-5).

3. Remove the drive belt (see page 4-30).

4. Remove the cylinder head cover (see page 6-73).

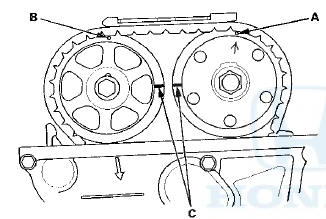

5. Set the No. 1 piston at top dead center (TDC). The punch mark (A) on the variable valve timing control (VTC) actuator and the punch mark (B) on the exhaust camshaft sprocket should be at the top. Align the TDC marks (C) on the VTC actuator and the exhaust camshaft sprocket.

6. Disconnect the VTC oil control solenoid valve

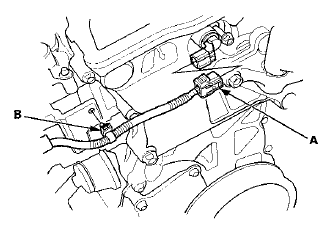

6. Disconnect the VTC oil control solenoid valve connector (A) and remove the harness clamp (B).

7. Remove the VTC oil control solenoid valve (see page


7. Remove the VTC oil control solenoid valve (see page 11-273).

8. Remove the crankshaft pulley (see page 6-61).

9. Support the engine with a jack and a wood block under the oil pan.

10. Remove the ground cable (A), then remove the side engine mount bracket (B).

11. Remove the side engine mount bracket mounting


11. Remove the side engine mount bracket mounting bolts.

12. Remove the cam chain case (A) and spacer (B).


12. Remove the cam chain case (A) and spacer (B).

13. Loosely install the crankshaft pulley.


13. Loosely install the crankshaft pulley.

14. Turn the crankshaft counterclockwise to compress the auto-tensioner.

15. Align the holes on the lock (A) and the auto-tensioner

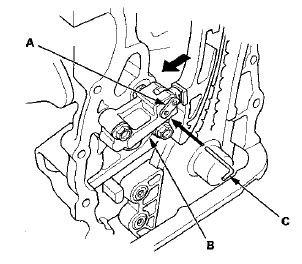

15. Align the holes on the lock (A) and the auto-tensioner (B), then insert a 1.2 mm (0.05 in) diameter pin or lock pin (P/N 14511-PNA-003) (C) into the holes. Turn the crankshaft clockwise to secure the pin.

16. Remove the auto-tensioner.


16. Remove the auto-tensioner.

17. Remove cam chain guide B.


17. Remove cam chain guide B.

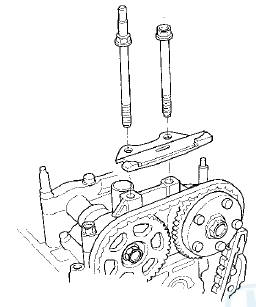

18. Remove cam chain guide A and the tensioner arm (B).


18. Remove cam chain guide A and the tensioner arm (B).

19. Remove the cam chain.


19. Remove the cam chain.
