Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE: - Take care not to scratch the console.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console (see page 20-158).

2. Open the console armrest.

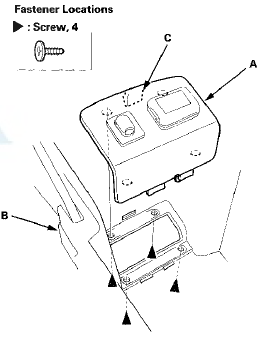

3. Remove the screws, then remove the accessory power socket trim (A) from the console box (B) by releasing the hook (C).

4. Install the trim in the reverse order of removal.
