Honda Accord: A/C Line Replacement

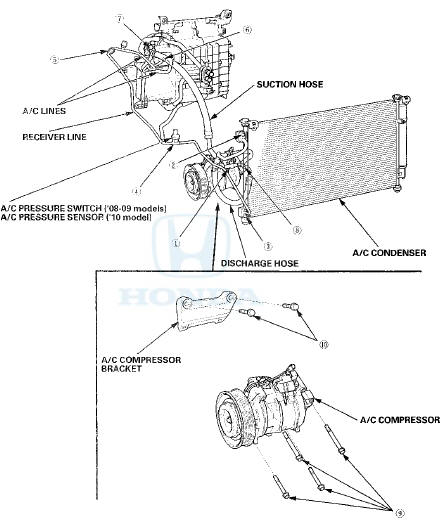

1.Discharge hose to the A /C compressor (6 x 1.0 mm): S.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
2.Discharge hose to the A /C condenser (6x1.Р’В© mm): 9.8 N-m f 1.0 kgf-m, 7.2 Ibf-ft)
3.Receiver line to the A /C condenser (6 x 1.0 mm): 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
4.A/C pressure switch or A /C pressure sensor to the receiver line (11 x 1.0 mm): 10.8 N-m (1.1 kgf-m, 8.0 Ibf-ft)
5.Receiver line to the A /C line (16 x 1.5 mm): 13.7 N-m (1.4 kgfm, 10.1 ibf-ft)
6.A/C lines to the evaporator (6x 1.0 mm): 9.8 N-m (1.0 kgfm, 7.2 Ibf-ft)
7.A/C line to the suction hose (6x 1.0 mm): 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
8.Suction hose to the A /C compressor (6 x 1.0 mm): 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
9.A/C compressor to the A /C compressor bracket (8 x 1.25 mm): 22 N-m (2.2 kgfm, 16 Ibf-ft)
10.A/C compressor bracket to the engine block (1Р’В© x 1.25 mm): 44 N-m (4.5 kgfm, 32.5 Ibf-ft)
