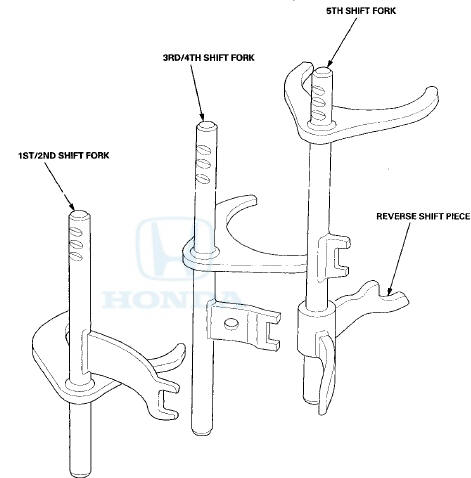

Shift Fork Clearance Inspection

1. Measure the clearance between each shift fork (A) and its matching synchro sleeve (B). If the clearance exceeds the service limit, go to step 2. Standard: 0.35-0.65 mm (0.014-0.026 inj Service ...

Mainshaft Assembly Clearance Inspection

1. Support the bearing Inner race with an appropriate sized socket ( A ) , and push down on the mainshaft ( B ) . 2. Measure the clearance between 2nd gear (C) and 3rd gear (D) with a feeler gaug ...
