Honda Accord: Wheel Speed Sensor Replacement - VSA System Components - Brakes - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Wheel Speed Sensor Replacement

Front

1. Turn the ignition switch to LOCK (0).

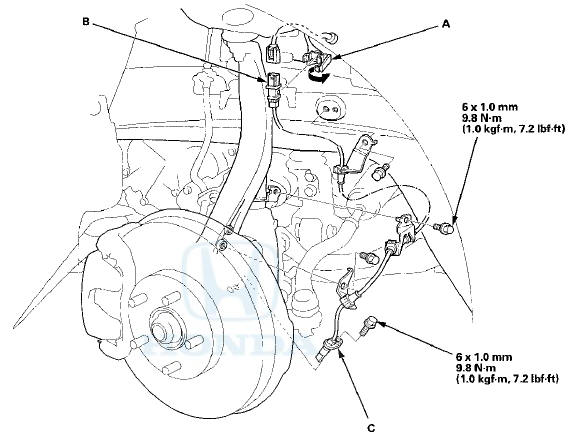

2. Release the clamp (A), then disconnect the wheel speed sensor connector (B).

3. Remove the bolts and the wheel speed sensor (C).


3. Remove the bolts and the wheel speed sensor (C).

4. Install the wheel speed sensor in the reverse order of removal, and note these items: - Do not twist the sensor wires.

- If the wheel speed sensor comes in contact with the wheel bearing, it is faulty, - Make sure there is no debris in the sensor mounting hole.

5. Start the engine, and make sure the ABS and the VSA indicators go off.

6. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.



Rear

1. Turn the ignition switch to LOCK (0).

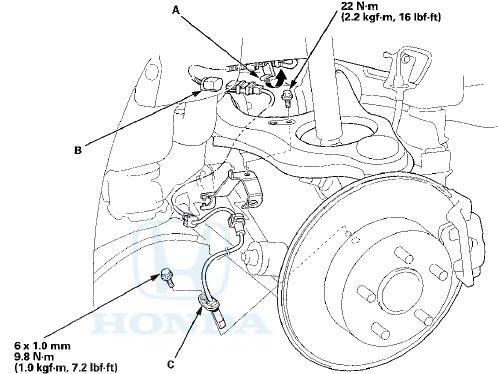

2. Release the clamp (A), then disconnect the wheel speed sensor connector (B).

3. Remove the clamps, the bolt, and the wheel speed sensor (C).


3. Remove the clamps, the bolt, and the wheel speed sensor (C).

4. Install the wheel speed sensor in the reverse order of removal, and note these items: - Do not twist the sensor wires.

- If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.

- Make sure there is no debris in the sensor mounting hole.

5. Start the engine, and make sure the ABS and the VSA indicators go off.

6. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.

SUPPLEMENTAL RESTRAINT SYSTEM fSRS) (If bodf maintenance is required)

The Accord SRS includes a driver's airbag in the steering wheel hub, a passenger's airbag in the dashboard above the glove box, seat belt tensioners in the front seat belt retractors, side curtain airbags in the sides of the roof, and side airbags in the front seat-backs. Information necessary to safely service the SRS is included in this Service Manual. Items marked with an asterisk (*) on the contents page include or are located near SRS components. Servicing, disassembling, or replacing these items requires special precautions and tools, and should be done by an authorized Honda dealer.

- To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal or side collision, all SRS service work should be done by an authorized Honda dealer.

- Improper service procedures, including incorrect removal and installation of the SRS, could lead to personal injury caused by unintentional deployment of the airbags, side airbags, and/or side curtain airbags.

- Do not bump or impact the SRS unit, front impact sensors, side impact sensors, or rear safing sensor, especially when the ignition switch is in ON (II), or for at least 3 minutes after the ignition switch is turned to LOCK (0); otherwise, the system may fail in a collision, or the airbags may deploy.

- SRS electrical connectors are identified by yellow color coding. Related components are located in the steering column, center console, dashboard, dashboard lower cover, in the dashboard above the glove box, in the front seats, in the roof side, and around the floor. Do not use electrical test equipment on these circuits.
