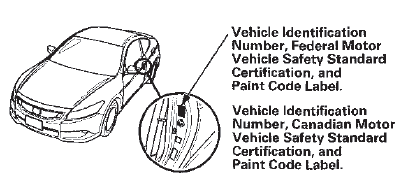

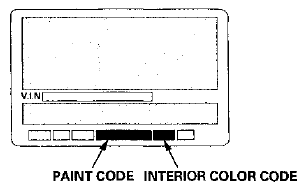

Honda Accord: Vehicle Identification Number
Manufacturer, Make, and Type of Vehicle
1HG; Honda of America Mfg., Inc.
Honda passenger vehicle
Line, Body, and Engine Type
CS1: Accord Coupe/K24Z3
Body Type and Transmission Type
1: 2-door Coupe/5-speed Manual
2: 2-door Coupe/5-speed Automatic
Vehicle Grade (Series)
USA models
3: LX, LX PZEV
7: EX, EX PZEV
8: EX-L, EX-L PZEV
Canada models
3: LX
7: EX
8: EX-L
Check Digit
Model Year
9: '09
Factory Code
A: Marysville, Ohio Factory in U.S.A.
Serial Number
000001-: USA models
800001 -”: Canada models
Engine Number
Engine Type
K24Z3: 2.4 L DOHC i-VTEC Sequential Multiport
Fuel-injected, 190HP engine
Serial Number
2500001-: PZEV
2800001-: Except PZEV ...
