Honda Accord: Sealing Bolt Installation

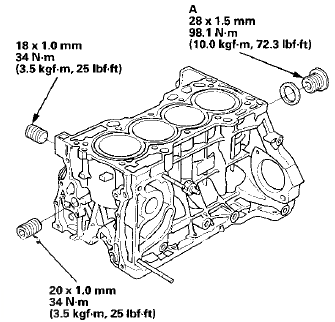

NOTE: When installing the sealing bolt (A), always use a
new washer.
