Honda Accord: Reverse Shift Fork Clearance Inspection - Manual Transmission - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Reverse Shift Fork Clearance Inspection

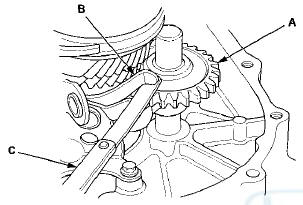

1. Measure the clearance between the reverse Idler gear (A) and the reverse shift fork (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2.

Standard; 0.20-0.59 mm (0.008-0.023 In)

Service Limit: 1.2 mm (0.05 in)

Measure the width of the reverse shift fork.


Measure the width of the reverse shift fork.

- If the width is not within the standard, replace the reverse shift fork.

- If the width is within the standard, replace the reverse idler gear.

Standard: 13.4-13.7 mm (0.53-0.54 in)

Change Lever Clearance Inspection


    Transmission Disassembly
    Exploded View-Clutch Housing 1.DIFFERENTIAL ASSEMBLY 2.SHIFT FORK ASSEMBLY 3.6 mm FLANGE BOLT 13 N-m (1.3 kgf-m, 9.4 Ibf-ft) 4.BEARING SET PLATE 5.COUNTERSHAFT ASSEMBLY 6.NEEDLE BEARING 7.OI ...

    Change Lever Clearance Inspection
    1. Measure the clearance between the change lever (A) and the select lever (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2. Standard: 0.05-”0.25 mm (0.002 ...
