Honda Accord: Mainshaft Bearing and Oil Seal
Replacement - Torque Converter Housing - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Mainshaft Bearing and Oil Seal Replacement

Special Tools Required

-Adjustable Bearing Puller, 2 5 - 4 0 mm 07736-A01000B

-Driver Handle, 15 x 135L 07749-0010000

-Attachment, 62 x 68 mm 07746-0010500

-Attachment, 72 x 75 mm 07746-0010600

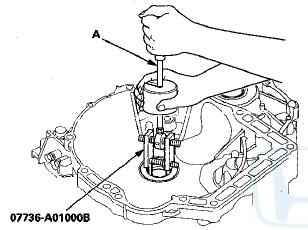

1. Remove the mainshaft bearing and the oil seal using the 25—40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).

2. Install a new mainshaft bearing until it bottoms in the


2. Install a new mainshaft bearing until it bottoms in the torque converter housing using the driver handle and the 62 x 68 mm attachment.

3. Install a new oil seal flush with the torque converter


3. Install a new oil seal flush with the torque converter housing using the driver handle and the 72 x 75 mm attachment.

NOTE: Do not drive the oil seal into the torque converter housing until it bottoms out; it will block the fluid return passage and cause transmission damage.
