System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: DTC Troubleshooting Index

NOTE: Record all DTCs, and sort them by DTC type using the DTC troubleshooting index, then troubleshoot the DTC(s) in this order:

• Battery voltage DTCs

• Internal error DTCs

• Loss of communication DTCs

• Signal error DTCs

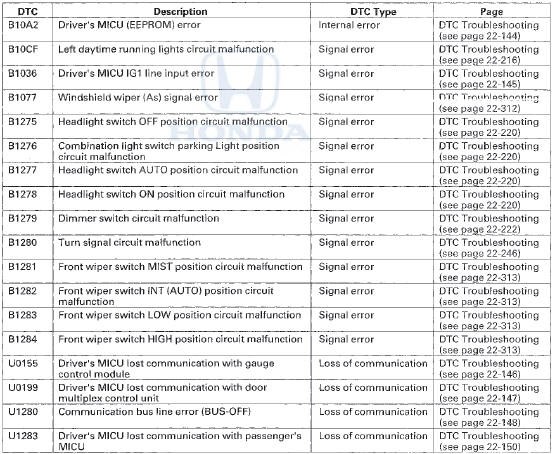

Driver's MICU

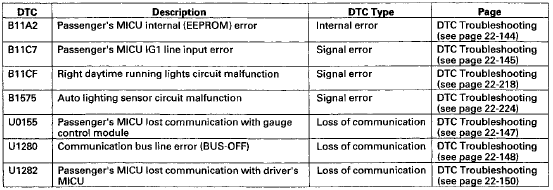

Passenger's MICU


Passenger's MICU

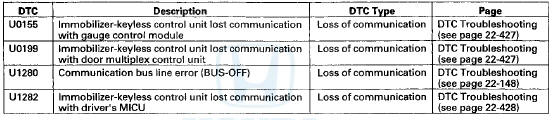

Immobilizer-Keyless Control Unit


Immobilizer-Keyless Control Unit

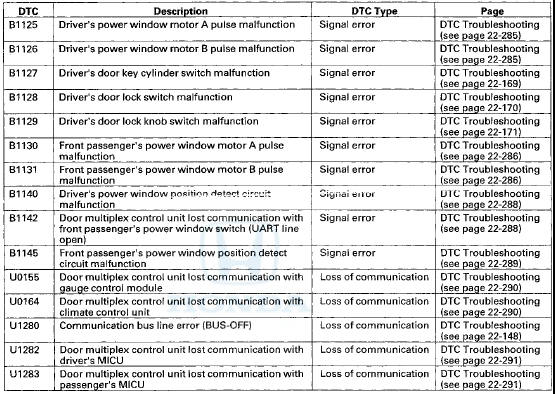

Door Multiplex Control Unit


Door Multiplex Control Unit

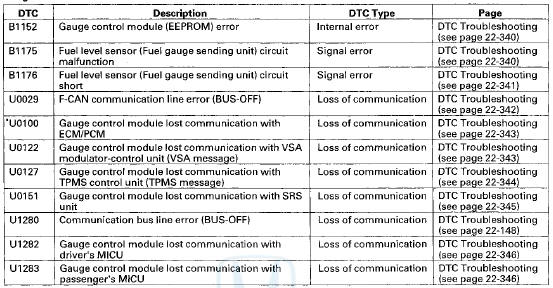

Gauge Control Module


Gauge Control Module

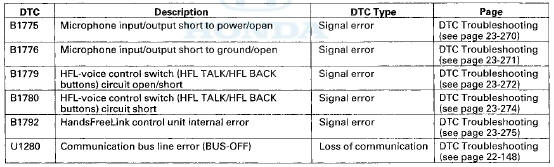

HandsFreeLink Control Unit


HandsFreeLink Control Unit

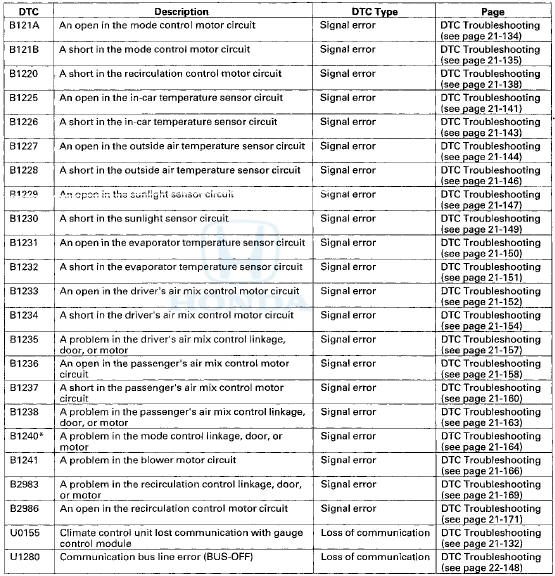

Climate Control Unit


Climate Control Unit

*: '10 model


*: '10 model
