Honda Accord: Driveshaft Reassembly - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Driveshaft Reassembly

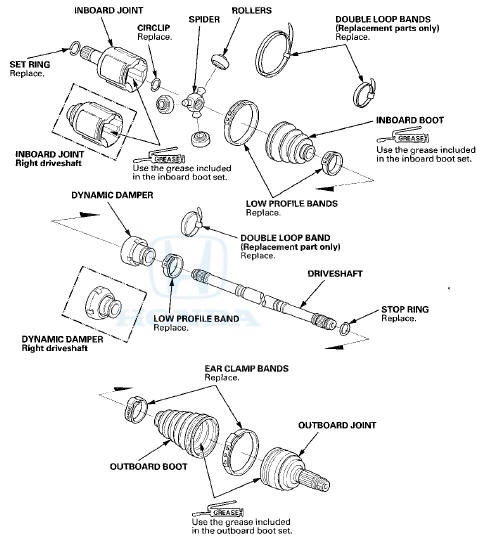

Exploded View

Special Tools Required


Special Tools Required

-Boot Band Tool KD-3191 or equivalent, commercially available

•Seal Clamp Tool Kent-Moore J-35910 or equivalent, commercially available

-Boot Band Pliers, commercially available

NOTE: Refer to the Exploded View, as needed, during this procedure.

Dynamic Damper Replacement
1. Remove the Inboard joint (see page 16-7). 2. Remove the dynamic damper band (see step 1 on page 16-7). 3. Remove the dynamic damper (A). Left driveshaft Right driveshaft 4. Install a ...

Inboard Joint Side
1. Wrap the splines with on the driveshaft vinyl tape (A) to prevent damaging the inboard boot. 2. Install the inboard boot onto the driveshaft, then remove the vinyl tape. Be careful not to dama ...
