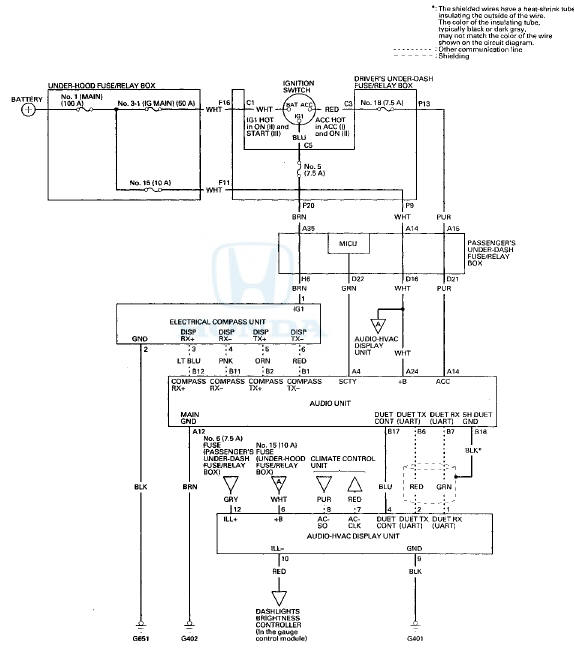

Honda Accord: Circuit Diagram - Electrical Compass - Audio, Navigation, and Telematics - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

Electrical Compass Zone Selection


    System Description
    Overview The electrical compass shows the azimuth information in 8-directions (N, NE, E, SE, S, SW, W, NW) to the audio-HVAC display unit via the audio unit. Starting Operation When the igniti ...

    Electrical Compass Zone Selection and Calibration
    NOTE: • You should do this procedure any time the electrical compass unit is replaced. • You should do this procedure in an open area away from buildings, power lines, and other vehicl ...
