Honda Accord: Circuit Diagram - Power Mirrors - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

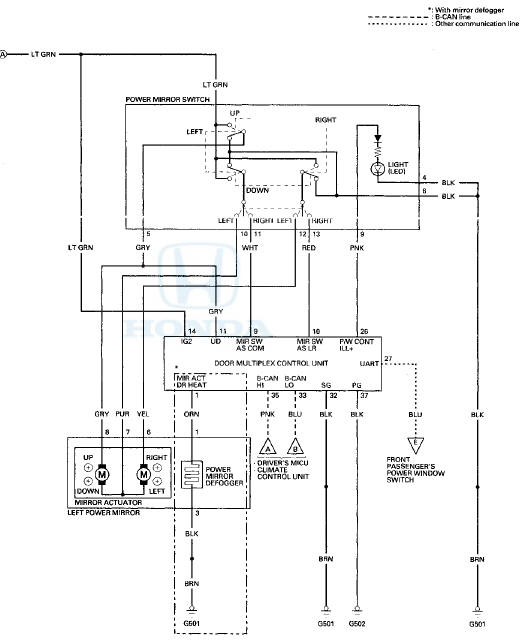

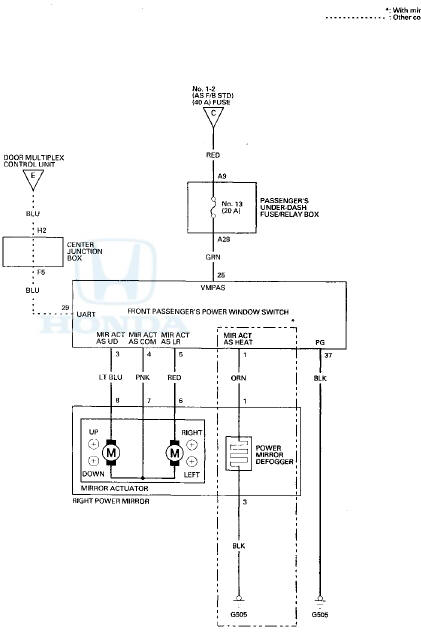

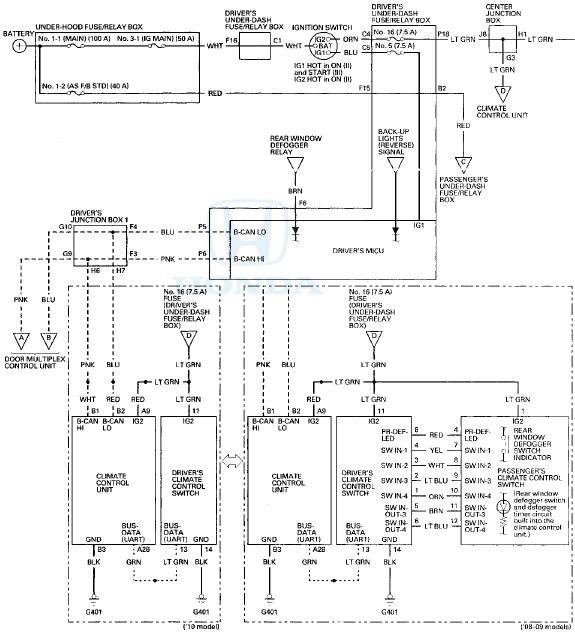

With navigation system

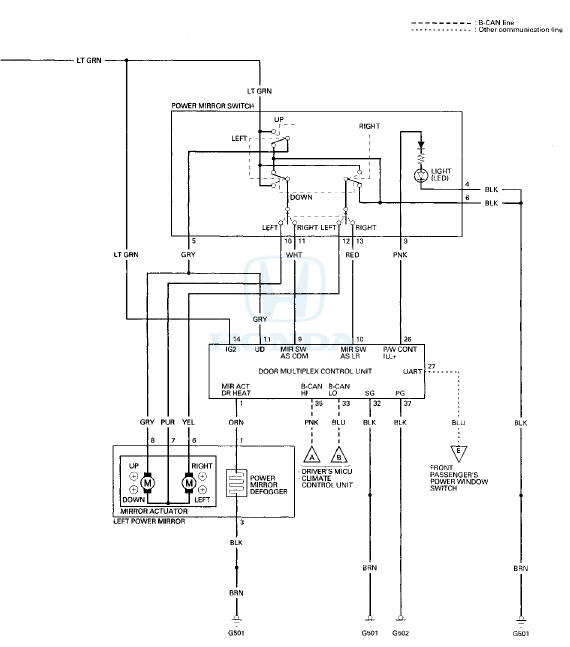

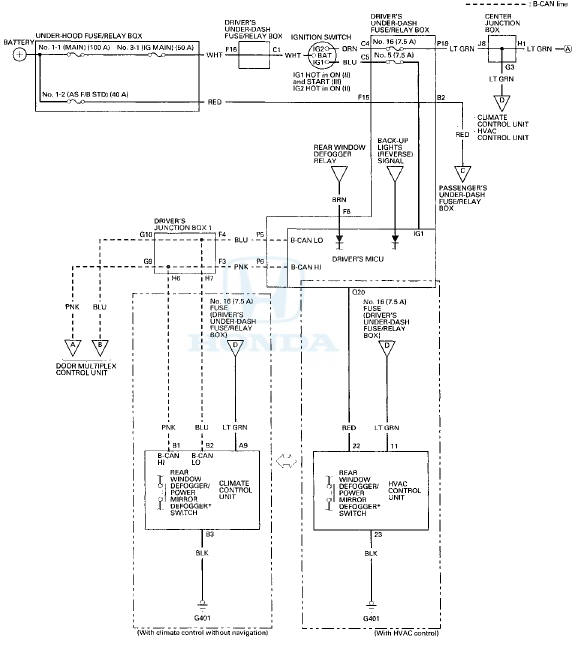

Without navigation system


Without navigation system







Function Test


    Component Location Index
    With navigation system Without navigation system ...

    Function Test
    NOTE: The right power mirror is controlled by the front passenger's power w i n d o w s w i t c h . W h e n t h e power mirror s w i t c h is o p e r a t e d , t h e d o o r m u l t i p l e x c o n ...
