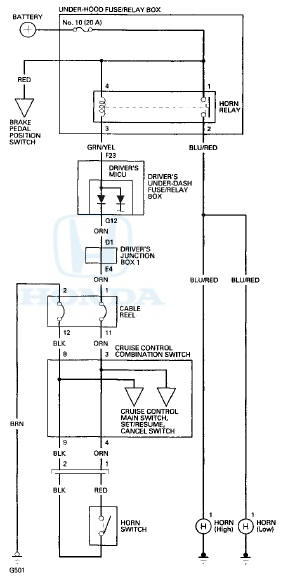

Component Location Index

...

Horn Test/Replacement

1. Remove the grille cover; •2-door (see page 20-274) • 4-door (see page 20-274) 2. Disconnect the 1P connector (A) from each horn (B). 3. Test the horn by momentarily connecting L _.t ...
