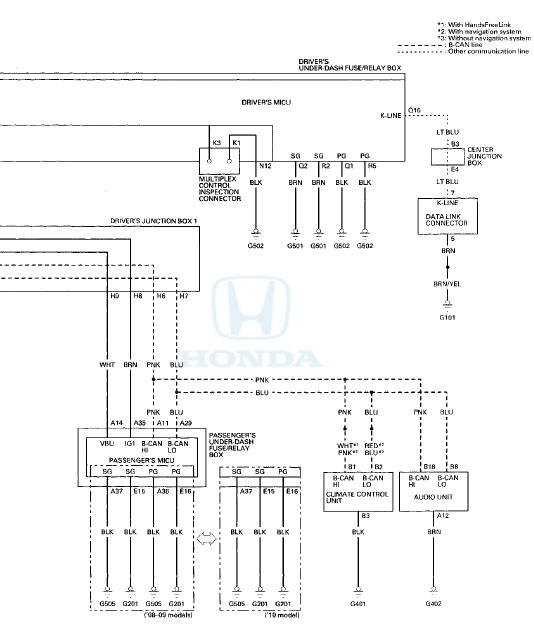

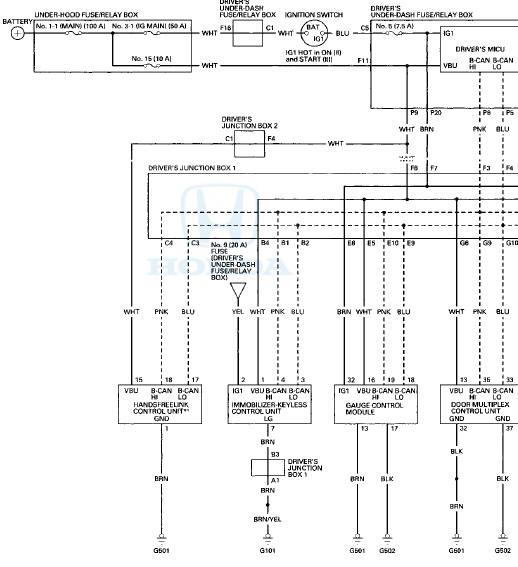

Honda Accord: Circuit Diagram - Multiplex Integrated Control
System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram


DTC Troubleshooting


    Sleep and Wake-up Mode Test
    1. Shift to the sleep mode: Close all doors. Turn the ignition switch to LOCK (0), and remove the key, then open and close the driver's door. If the MICU receives no further inputs listed below, i ...

    DTC Troubleshooting
    DTC B10A2: Driver's MICU (EEPROM) Error NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see page 22-134). 1. Clear the D ...
