Honda Accord: Circuit Diagram - Climate Control - Heating, Ventilation, and Air Conditioning - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

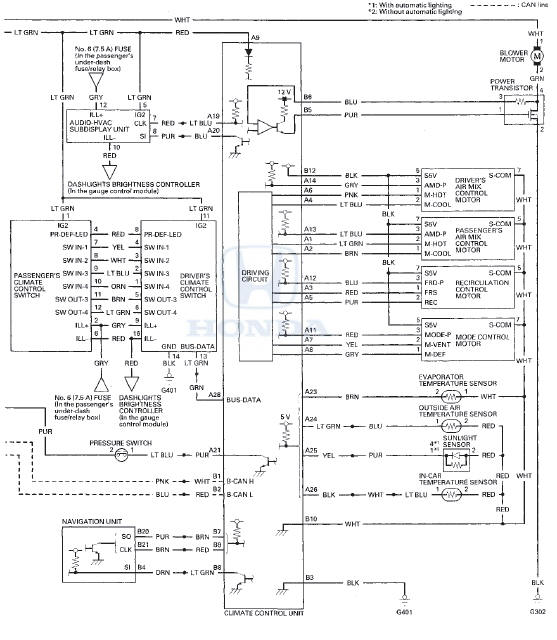

'08-09 Models With Navigation

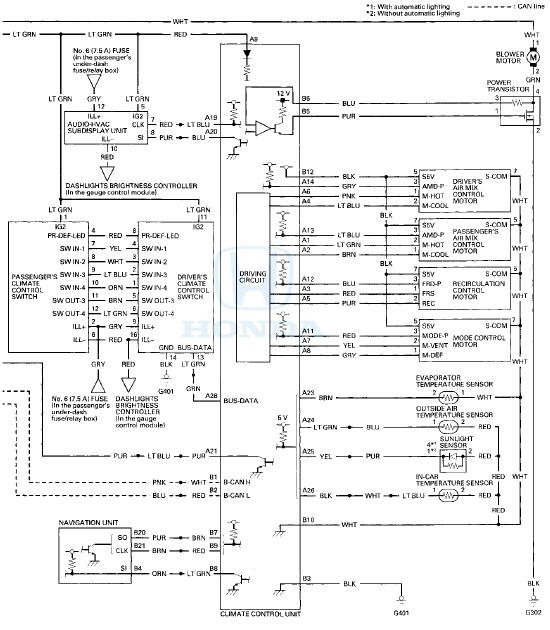

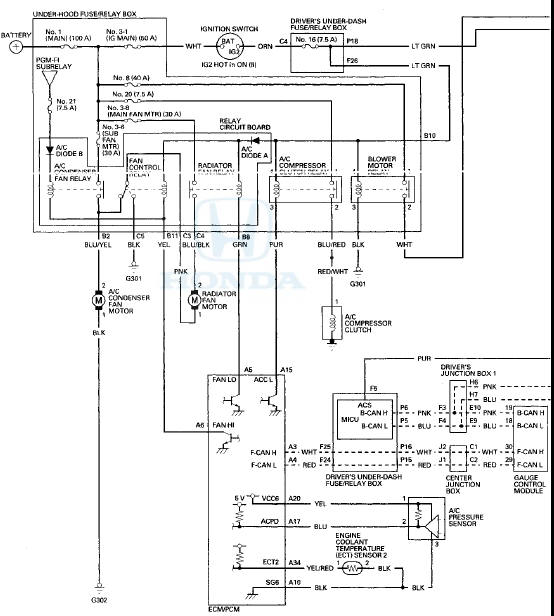

'10 Model With Navigation


'10 Model With Navigation

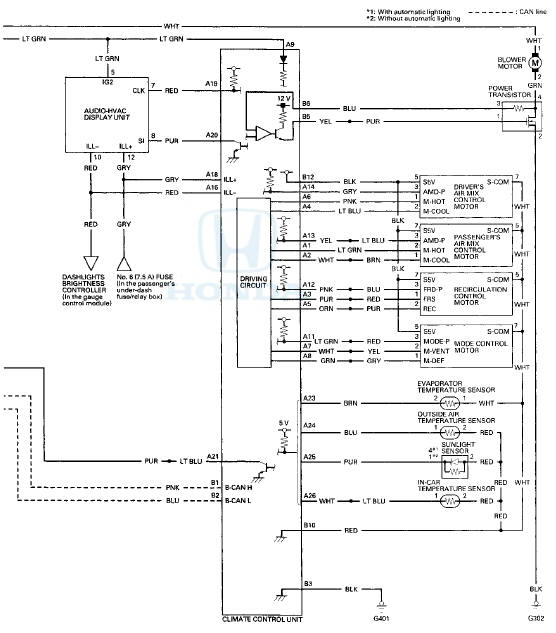

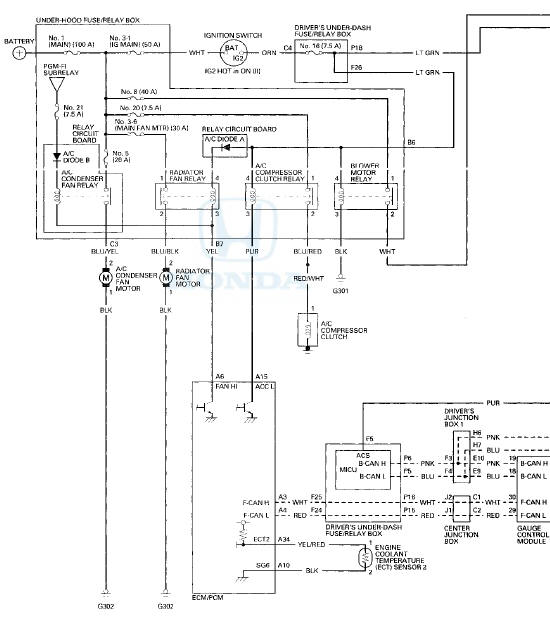

'08-09 Models Without Navigation


'08-09 Models Without Navigation

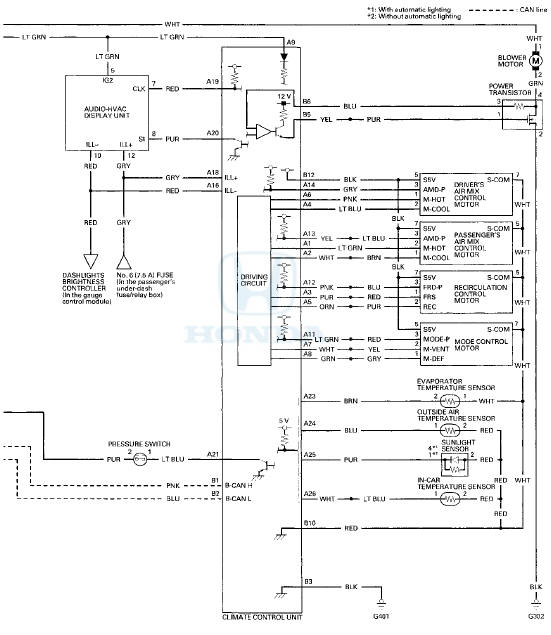

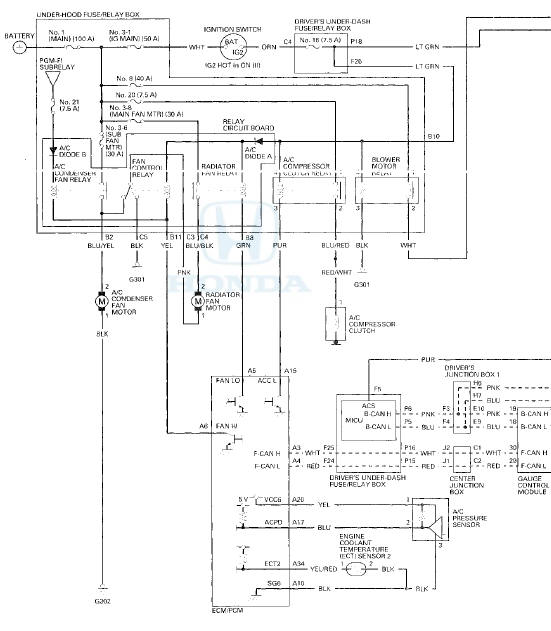

'10 Model Without Navigation


'10 Model Without Navigation
