Honda Accord: Automatic Transmission and A/T Differential (cont'd) - Standards and Service Limits - Specifications - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Automatic Transmission and A/T Differential (cont'd)

Steering

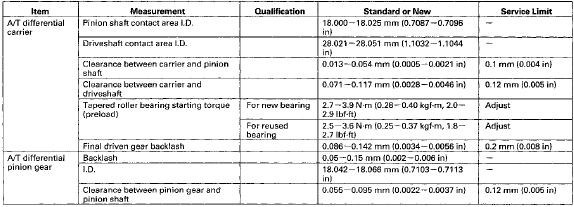

    Automatic Transmission and A/T Differential (cont'd)
    ...
